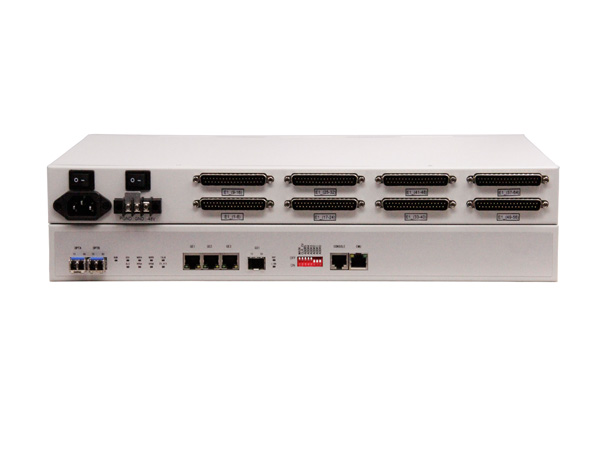

1.Overview

ZCP-230 is optical transmission equipment. It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 64 E1s and four 1000Mbps Ethernet data channel transmission over optical line of 1.25Gbit/s.

It provides dual hot-pluggable optical interfaces to realize 1+1 optical protection. It can be used to build Point-to-point, Ring, Chain network.

With low power consumption, high integration and well stability, it is a cost-competitive solution for the application where gigabit Ethernet and E1 are required simultaneously, such as the telecommunication, the electric power and the finance fields.

2.Feature

• Optical interface：
• Number of ports: 2 (1+1 APS);
• Date rate：1.25Gbit/s;
• Connector: SFP slot, Hot pluggable;
• 1+1 path protection, Recovering time: <50ms;
• Supports real-time detection for the status of optical module;
• Supports ALS (Automatic Leaser Shutdown);
• Supports RPD (Remote Power down Detection);
• Local equipment supports optical line loop and device loop.
• E1 interface：
• Number of ports: 64;
• Date rate：2.048Mbps±50ppm;
• Line code: HDB3;
• Line Impedance: 120Ω, balanced or 75Ω, unbalanced;
• Connector: RJ-45, balanced(via adapter cable); Two BNC, unbalanced(via adapter cable);
• Compliance: ITU-T G.703, G.704, G.823;
• Supports E1 device loop and E1 line loop for easy testing;
• Supports embedded BERT for troubleshooting.
• Ethernet interface：
• Number of ports: 4;
• Combinations: 3 electrical Gigabit Ethernet (GE)+1 optical Gigabit Ethernet (GX);
• Connector: RJ-45 for electrical (1000BaseTx)+SFP for optical (1000BaseSx or 1000BaseLx);
• Date rate: Optical 1000 Mbps and Electrical 10/100/1000Mbps, autonegotiation;
• Max Frame Size:1518/2000/9720 bytes;
• Min Frame Size: 64 bytes;
• Supports unicast, multicast and broadcast frame;
• MAC address table: 4K;
• MAC address dynamic learning;
• VLAN: Supports IEEE 802.1Q tag-based VLAN and port-based VLAN;
• Supports QinQ (Double Tag VLAN);
• Provides performance statistic for each Ethernet port;
• Auto MDI/MDX function;
• Supports 802.3x flow control and broadcast storm filtering control;
• Supports port rate control;
• Supports port trunking/aggregating function.
• Compliance: IEEE802.3 and IEEE802.3u.
• NE Management：
• CLI: Local management is performed via CLI terminal.
• SNMP: Compatible with V1 and V2C protocol. Access is available using SNMP management software "Smartview".
• LED indication: Necessary alarm indications such as NOP, LOF, RPD.
• Download online: Supports FTP protocol and firmware download online without disturbance of existing traffic.

3.Technical Specification

• Power supply：
• AC+DC dual input optional.
• AC range: 85～264V AC
• DC range : -36V ～-72V DC
• Power consumption: 25W(±10％)
• Support Redundancy Power Supply Protection.
• Physical：
• Height: 43.7 mm (1U).
• Width: 434 mm (19 in).
• Depth: 255 mm.
• Weight: 4.0 Kg.
• Operating environment：
• Temperature: -5~55-deg centigrade.
• Storage Temperature: -40~70-deg centigrade.
• Relative Humidity: <95% non-condensing.

4.Application

ZCP-230 can be used to build Point-to-point, Ring, Chain network, as the following figure shows:

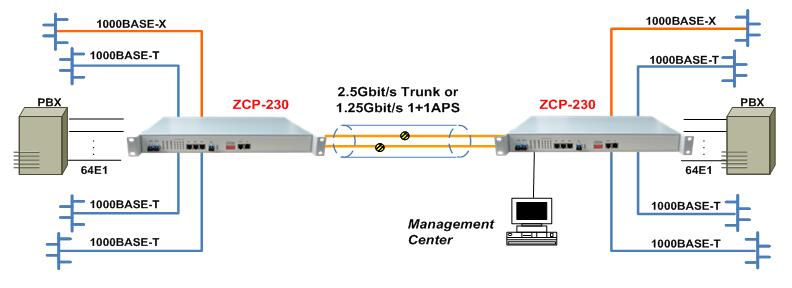

Figure.1-4-1 Point-to-point Application

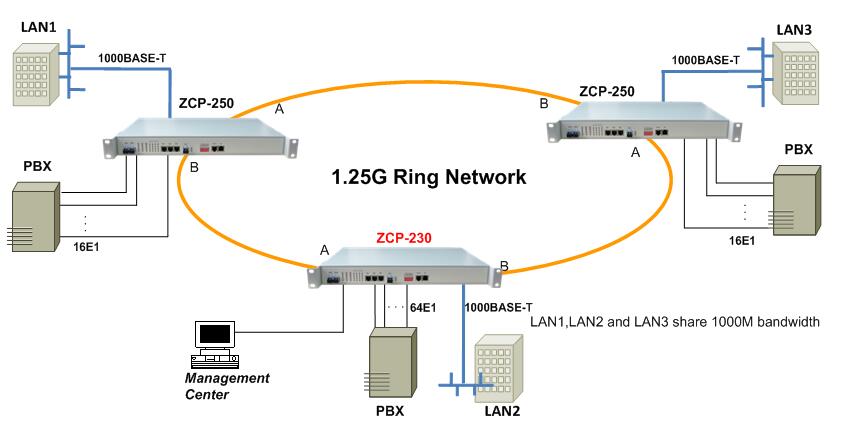

Figure.1-4-2 Ring Application

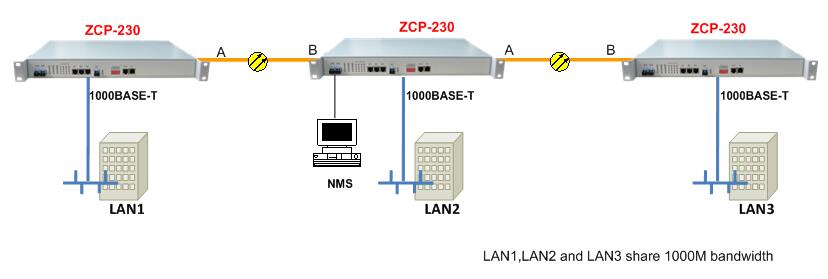

Figure.1-4-3 Chain Application

5.Order Information

ZCP-230AD : 64E1+3GE+1GX over 2 Fibers PDH Optical Multiplexer, 1+1 Optical Ports backup (support P2P,Ring,Daisy-chain network), 75/120Ω, SNMP Management, 220VAC+ -48VDC Dual Power Supply Redundancy, 1U 19"Size Rackable Unit
