1.Overview

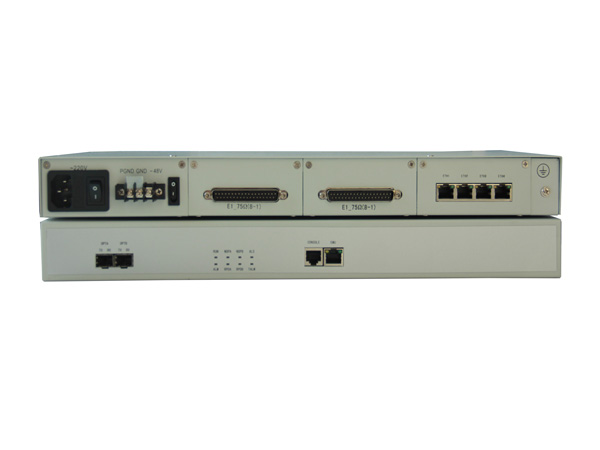

ZCP-240 is designed as a modular system with two 155Mb/s optical interfaces to provide an ultra-compact, cost-effective and flexible multi-service platform. With optional cards such as E1 card and Ethernet card, it is easy to meet user’s various requirements. It can realize the 4/8/16E1 and 100Mbps Ethernet transmission over optical line.

With low power consumption, high integration and well stability, ZCP-240 can be used to build point-to-point network; it is a cost-competitive solution for the application such as the telecommunication, the electric power and the finance fields.

2.Feature

• Optical interface：
• Number of ports: 2 (1+1 APS);
• Date rate：155Mbps;
• Connector: SFP slot, Hot pluggable;
• 1+1 path protection, Recovering time: <50ms;
• Supports real-time detection for the status of optical module;
• Supports ALS (Automatic Leaser Shutdown);
• Supports RPD (Remote Power down Detection);
• Local equipment supports optical line loop and device loop, remote equipment supports optical line loop.
• E1 interface：
• Number of ports: 4, 8 or 16;
• Date rate：2.048Mbps±50ppm;
• Line code: HDB3;
• Line Impedance: 120Ω, balanced or 75Ω, unbalanced;
• Connector: RJ-45, balanced; Two BNC, unbalanced (via adapter cable).
• Compliance: ITU-T G.703, G.704, G.823;
• Supports E1 device loop and E1 line loop for easy testing;
• Supports embedded BERT for troubleshooting.
• Ethernet interface：
• Number of ports: 4;
• Combinations: 4 electrical Ethernet (FE);
• Connector: RJ-45 for electrical (100BaseTx);
• Type: 10/100Mbps, autonegotiation, full/half-duplex;
• Max Frame Size:1518/1916 bytes;
• Min Frame Size: 64 bytes;
• Supports unicast, multicast and broadcast frame;
• MAC address table: 1K;
• MAC address dynamic learning;
• VLAN: Supports IEEE 802.1Q tag-based VLAN and port-based VLAN;
• Supports up to 16 items VLAN table;
• Provides performance statistic for each Ethernet port;
• Auto MDI/MDX function;
• Supports Link Fault Pass Through function
• Supports 802.3x flow control and broadcast storm filtering control;
• Supports port rate control;
• Compliance: IEEE802.3 and IEEE802.3u.
• NE Management：
• CLI: Local management is performed via CLI terminal.
• SNMP: Compatible with V1 and V2C protocol. Access is available using SNMP management software "Smartview".
• WEB: Supports local management based on WEB Browser login via local management interface (EMU).
• LED indication: Necessary alarm indications such as NOP, LOF, RPD.
• Download online: Supports FTP protocol and firmware download online without disturbance of existing traffic.

3.Technical Specification

• Power supply：
• AC+DC dual input optional.
• AC range: 85～264V AC
• DC range : -36V ~ -72V DC
• Power consumption: 10W(±10％)
• Support Redundancy Power Supply Protection.
• Physical：
• Height: 43.7 mm (1U).
• Width: 434 mm (19 in).
• Depth: 210 mm.
• Weight: 2.5 kg.
• Operating environment：
• Temperature: -5~55-deg centigrade.
• Storage Temperature: -40~70-deg centigrade.
• Relative Humidity: <95% non-condensing.

4.Application

ZCP-240 can be used to build point-to-point network, the four Ethernet ports share 100Mb/s, as the following figure shows:

Figure.1-4-1 Point-to-point Application 1

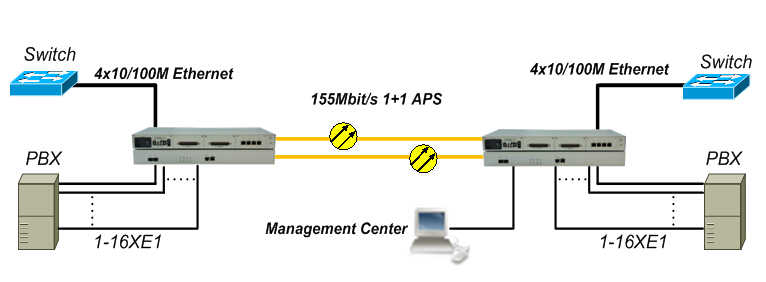

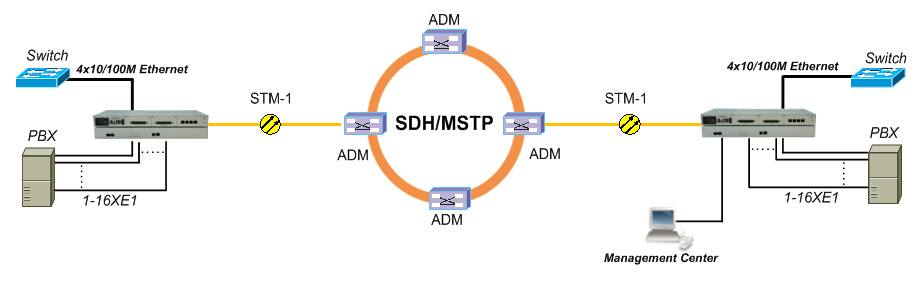

Figure.1-4-2 Point-to-point Application 2

5.Order Information

ZCP-240-120AD : 4E1+4X100M Ethernet Ports over 2 Fibers PDH Optical Multiplexer, 1+1 Optical Ports backup, 75/120Ω, SNMP Management, 220VAC+ -48VDC Dual Power Supply Redundancy, 1U 19"Size Rackable Unit

ZCP-240-240AD : 8E1+4X100M Ethernet Ports over 2 Fibers PDH Optical Multiplexer, 1+1 Optical Ports backup, 75/120Ω,, SNMP Management, 220VAC+ -48VDC Dual Power Supply Redundancy, 1U 19"Size Rackable Unit

ZCP-240-480AD : 16E1+4X100M Ethernet Ports over 2 Fibers PDH Optical Multiplexer, 1+1 Optical Ports backup, 75/120Ω,, SNMP Management, 220VAC+ -48VDC Dual Power Supply Redundancy, 1U 19"Size Rackable Unit
