1.Overview

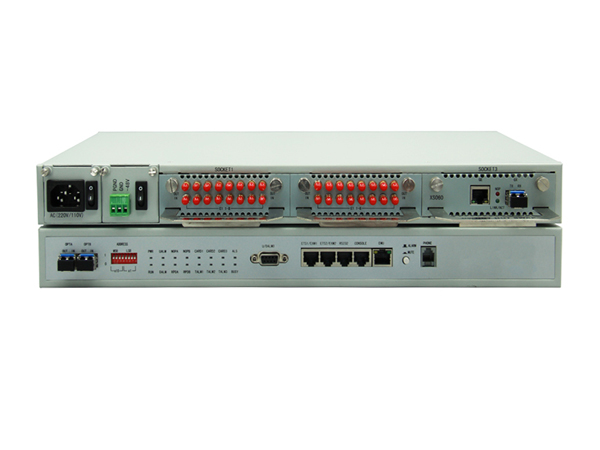

ZCS-310 is the STM-1 level multi-service Synchronous Digital Hierarchy (SDH) transmission system compatible with ITU-T standard. It is designed as a modular system with two 155.520Mb/s optical interfaces to provide an ultra-compact, cost-effective and flexible multi-service platform. With optional cards such as E1, Ethernet, V.35 and Engineering Order Wire card (EOW). It can be used as a Terminal Multiplexer (TM) or an Add-Drop-Multiplexer (ADM) to build point-to-point, ring and chain transmission network.

2.Feature

• STM-1 interface：
• Number of ports: 2 (1+1 APS, Recovering time: <50ms);
• Date rate：155.520Mbit/s;
• Connector: SFP slot, Hot pluggable, Optical or Electrical Optional;
• Clock:
• Internal timing.
• STM-1 line timing.
• Tributary timing from E1-1 to E1-16.
• External timing source input.
• External timing output.
• The timing source can be auto-switched according to SSM or operator settings.
• Supports ALS (Automatic Leaser Shutdown).
• Supports RPD (Remote Power down Detection).
• Supports optical line loop and device loop.

• Compliance: ITU-T G.957, G.841, G.813, G.707,G.825.
• E1 interface：
• Number of ports: 8 or 16.
• Date rate：2.048Mbit/s.
• Line code: HDB3.
• Line Impedance:
• 120Ω, balanced.
• 75Ω, unbalanced.
• Connector:
• RJ-45, balanced.
• BNC, unbalanced (via adapter cable).
• Compliance:ITU-T G.703, G.704, G.823.
• Fast Ethernet interface：
• Number of ports: 4.
• Combinations: 4 electrical Gigabit Ethernet (GE).
• Connector: RJ-45 for electrical (1000BaseTx).
• Date rate: Electrical 10/100Mbps.
• Max Frame Size: 1552 bytes.
• Min Frame Size: 64 bytes.
• Compliance: Relevant sections of IEEE 802.3 and IEEE802.3u.
• VCG: 4.
• Supports unicast multicast and broadcast frame.
• MAC address table: 8K.
• MAC aging time: 15/300 seconds.
• MAC address dynamic learning.
• VLAN: IEEE 802.1Q tag-based VLAN, port-based VLAN.
• Provides performance statistic for each Ethernet port, such as error packets.
• Supports PAUSE flow control.
• Supports broadcast storm filtering control.
• Auto MDI/MDX function
• Generic Framing Procedure GFP-F compliant with ITU-T G.7041.
• VCAT compliant with ITU-T G.707 and LCAS compliant with ITU-T G.7042 (Ethernet over SDH).

• Gigabit Ethernet interface：
• Number of ports: 2.
• Combinations:
• 1 electrical Gigabit Ethernet (GE).
• 1 optical Gigabit Ethernet (GX).
• Connector:
• RJ-45 for electrical (1000BaseTx).
• SFP for optical (1000BaseSx or 1000BaseLx).
• Date rate:
• Optical 1000 Mbps.
• Electrical 10/100/1000Mbps.
• Max Frame Size: 1552/2036 bytes.
• Min Frame Size: 64 bytes.
• Compliance: Relevant sections of IEEE 802.3 and IEEE802.3u.
• VCG: 1.
• Supports unicast multicast and broadcast frame.
• MAC address table: 8K.
• MAC aging time: 15/300 seconds.
• MAC address dynamic learning.
• VLAN: IEEE 802.1Q tag-based VLAN, port-based VLAN.
• QinQ: Supports QinQ (Double Tag VLAN).
• Provides performance statistic for each Ethernet port, such as error packets.
• Supports PAUSE flow control.
• Supports broadcast storm filtering control.
• Perfect Ethernet loop processing.
• Supports link aggregation function.
• Auto MDI/MDX function.
• Generic Framing Procedure GFP-F compliant with ITU-T G.7041.
• VCAT compliant with ITU-T G.707 and LCAS compliant with ITU-T G.7042 (Ethernet over SDH).
• System Interface：
• RS232 user channel interface: RS232.
• External synchronization interface / Extendable management interface : ETS1/EXM1, ETS2/EXM2.
• EOW interface: PHONE.
• UALM and DALM output interface: U/DALMO.
• NE Management：
• CLI: Local management is performed via an CLI terminal.
• SNMP: Compatible with V1 and V2C protocol. Access is available using SNMP management software "Smartview".
• LED indication: Necessary alarm indications such as NOP, LOF, RPD.
• Download online: Supports FTP protocol and firmware download online without disturbance of existing traffic.

3.Technical Specification

• Power supply：
• AC+DC dual input optional.
• AC range: 85～264V AC
• DC range : -36V ～-72V DC
• Power consumption: 20W(±10％)
• Support Redundancy Power Supply Protection.
• Physical：
• Height: 43.7 mm (1U).
• Width: 434 mm (19 in).
• Depth: 255 mm.
• Weight: 4.5 Kg.
• Operating environment：
• Temperature: -5~55-deg centigrade.
• Storage Temperature: -40~70-deg centigrade.
• Relative Humidity: <95% non-condensing.

4.Application

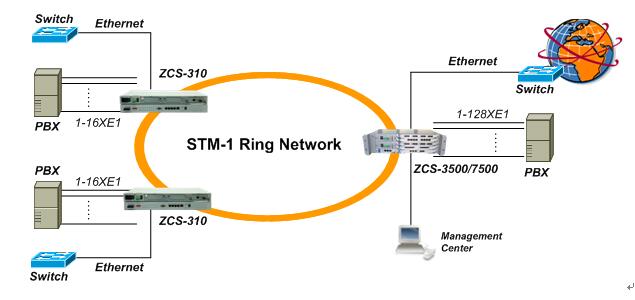

ZCS-310 can be used to build point-to-point, ring and chain network, as the following figure shows:

.

Figure.1-4-1 Point-to-Point Application

Figure.1-4-2 Point-to-Multi-Point Application

5.Order Information

ZCS-310AD : Multi-Service SDH Optical Multiplexer, 3 card slots, 2XSTM-1 intefaces, SNMP Managed, 1U 19”Size Rackable Unit, 220VAC+-48DC Dual Power Supply Redundancy

X8-SU: 8E1 Card, 8E1 75Ω, Mini BNC port, Up to 2 cards

X8-DU: 8E1 Card, 8E1 75/Ωohm, Mini BNC port, Up to 2 cards

XS050: 4VCG EOS Card, 4X10/100M Ethernet ports, 802.1Q_VLAN and Port_VLAN

XS060: GEOS Card, 1GE+1GX Ethernet ports, 802.1Q_VLAN and Port_VLAN
