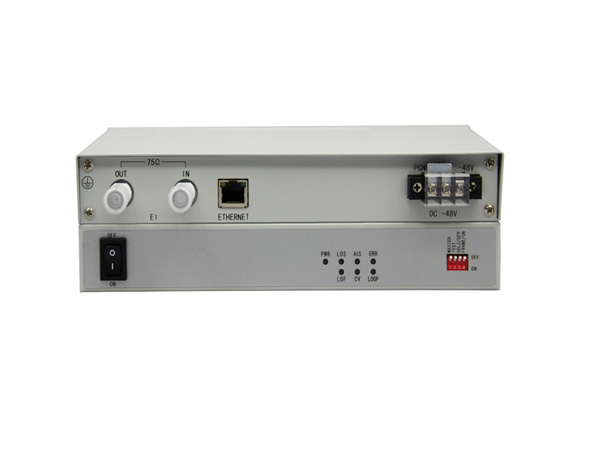

1.Overview

ZCC-100 is a Network Termination Unit connecting Fast Ethernet LANs over single E1 circuit. The device enables service providers to supply high-capacity Ethernet services to remote locations, and transparent connection of corporate LANs over existing E1 lines. The device can be used in point-to-point or in point-to-multipoint topology work together with Central unit ZCC-1200N/ZCC-1500. The device uses HDLC/GFP encapsulation to map the Ethernet traffic over E1.Typical applications include:

• Ethernet private Line / LAN services.
• IP DSLAMs, Cellular IP, and WiMAX base station back-hauling.
• Inter-office or Enterprise LAN connectivity.

2.Feature

• E1 interface：
• Number of ports: 1.
• Date rate：
• 2.048Mbit/s unframed.
• 31×64Kbit/s framed (PCM31)
• Line code: HDB3.
• Line Impedance:120Ω, balanced or 75Ω, unbalanced.
• Connector:
• RJ-45, balanced.
• BNC, unbalanced.
• Clock:
• Internal timing.
• Tracing E1 line timing.
• Compliance:ITU-T G.703, G.704, G.823.
• Ethernet interface：
• Number of ports: 1.
• Combinations: 1 electrical  Ethernet (FE).
• Connector: RJ-45 for electrical (100BaseTx).
• Date rate: 10/100Mbps.
• Max Frame Size: 2031 bytes.
• Min Frame Size: 64 bytes.
• Compliance: Relevant sections of IEEE 802.3 and IEEE802.3u.
• Supports unicast multicast and broadcast frame.
• Supports PAUSE flow control.
• Supports auto-MDI/MDIX function.
• NE Management：
• LED indication: Necessary alarm indications such as LOS, LOF, AIS.
• EoPDH encapsulation
• GFP-F encapsulation compliant to G.7041.
• Ethernet to single E1 mapping recommendation ITU-T G.8040.
• HDLC: HDLC encapsulation compliant to RJ017. Supports Unframed and Framed.
• Diagnostics
• Supports E1 loopback and the embedded E1 BERT (Bit Error Ratio Tester) testing function.

3.Technical Specification

• Power supply：
• AC+DC dual input optional.
• AC range: 85～264V AC
• DC range : -36V ～-72V DC
• Power consumption: 5W(±10％)
• Physical (1U 19'' Rackable / Desktop Unit )：
• Height: 43.7 mm (1U) / 34 mm.
• Width: 434 mm (19 in) / 240 mm.
• Depth: 130 mm / 128 mm.
• Weight: 3.0 Kg / 1.8 Kg.
• Operating environment：
• Temperature: -5~55-deg centigrade.
• Storage Temperature: -40~70-deg centigrade.
• Relative Humidity: <95% non-condensing.

4.Application

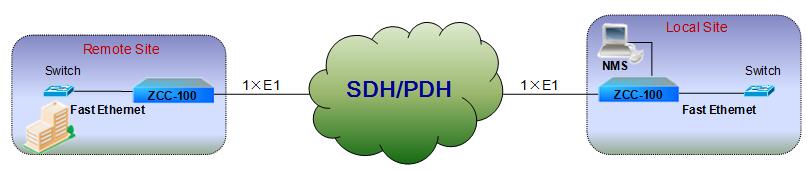

Figure 4-1 illustrates a typical application (point-to-point). With ZCC-100 system, the Ethernet is transferred by E1.

Figure.1-4-1 Point-to-Point Application

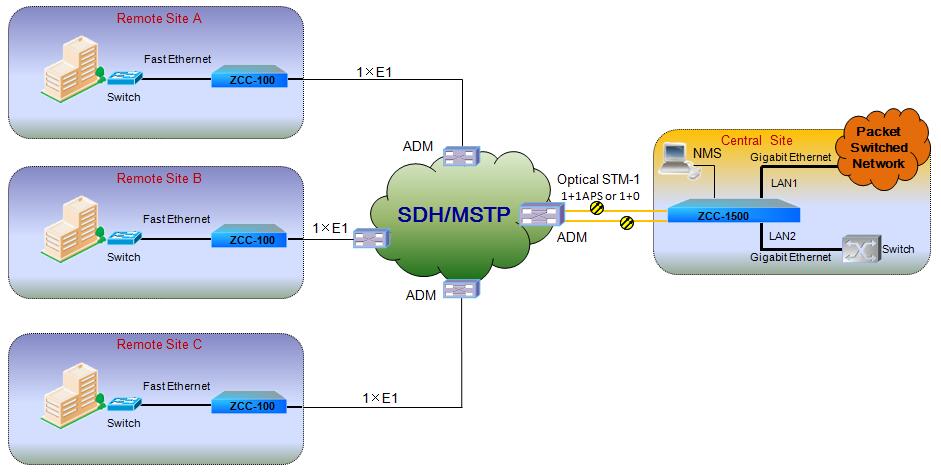

As shown in Figure.4-2, with EoPDH and VLAN technology, the remote Ethernet service can be transmitted and converged into the service center (Switch) by ZCC-1500(point-to-multipoint).

Figure.1-4-2 Point-to-Multi-Point Application

5.Order Information

ZCC-100AD : 10/100M Ethernet over E1 Converter, 1E1 75 / 120Ω intefaces, 1U 19”Size Rackable Unit, 220VAC+-48DC Dual Power Supply Redundancy

ZCC-100M : 10/100M Ethernet over E1 Converter, 1E1 75 / 120Ω intefaces, Desktop Unit, 220VAC/-48DC Single Power
