1.Overview

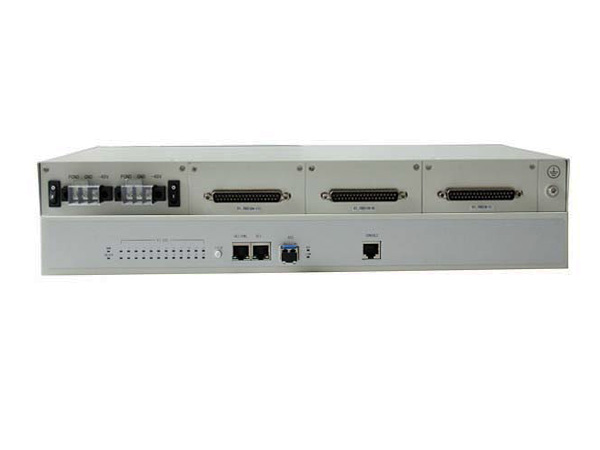

ZCC-1200N is a Gigabit Ethernet over TDM aggregation gateway that interconnects packet networks via PDH access. It provides three gigabit Ethernet interfaces and 24 E1s interfaces. ZCC-1200N typically deployed at a central location, It aggregates user Ethernet traffic received from remote devices (such as ZCC-100, ZCC-101, ZCC-110, ZCC-110L), thus completing a full access solution from the service provider’s central site to the customer premises. ZCC-1200N can be used in the traffic convergent network, supports point-to-multipoint application. Other typical applications include:

• IP DSLAM and IP base station traffic backhauling.
• WiMAX BTS traffic backhauling.
• Ethernet private line/LAN services.
• Backhauling of network management traffic.
• Aggregation of Ethernet traffic over PDH wireless links.

2.Feature

• E1 interface：
• Number of ports: 8,16 or 24.
• Date rate：2.048Mbit/s.
• Line code: HDB3.
• Line Impedance:
• 120Ω, balanced.
• 75Ω, unbalanced.
• Connector:
• RJ-45, balanced.
• BNC, unbalanced (via adapter cable).
• Clock:
• Internal timing.
• Tracing E1 line timing.
• The source of tracing E1 line can be switched according to the signal quality.
• Compliance:ITU-T G.703, G.704, G.823.
• Gigabit Ethernet interface：
• Number of ports: 3.
• Combinations:
• 2 electrical Gigabit Ethernet (GE).
• 1 optical Gigabit Ethernet (GX).
• Connector:
• RJ-45 for electrical (1000BaseTx).
• SFP for optical (1000BaseSx or 1000BaseLx).
• Date rate:
• Optical 1000 Mbps.
• Electrical 10/100/1000Mbps.
• Max Frame Size: 1552 bytes.
• Min Frame Size: 64 bytes.
• Compliance: Relevant sections of IEEE 802.3 and IEEE802.3u.
• VCG: up to 16 remote sites.
• Supports unicast multicast and broadcast frame.
• MAC address table: 4K.
• MAC aging time: 15/300 seconds.
• MAC address dynamic learning.
• VLAN: IEEE 802.1Q tag-based VLAN, port-based VLAN.
• QinQ: Supports QinQ (Double Tag VLAN).
• Provides performance statistic for each Ethernet port, such as error packets.
• Supports PAUSE flow control.
• Supports broadcast storm filtering control.
• Perfect Ethernet loop processing.
• Supports link aggregation function.
• NE Management：
• CLI: Local management is performed via an CLI terminal.
• SNMP: Compatible with V1 and V2C protocol. Access is available using SNMP management software "Smartview".
• LED indication: Necessary alarm indications such as LOS, LOF, AIS.
• Download online: Supports FTP protocol and firmware download online without disturbance of existing traffic.
• EoPDH encapsulation
• GFP: For single and multi-E1 E1 mode
• GFP-F encapsulation compliant to G.7041.
• Ethernet to single E1 mapping recommendation ITU-T G.8040.
• Ethernet to nxE1 mapping recommendation ITU-T G.7043.
• Virtual concatenation (VCAT) and Link Capacit Adjustment Scheme (LCAS) recommendation ITU-T G.7042.
• HDLC: For single E1 mode
• HDLC encapsulation compliant to RJ017.
• Supports Unframed and Framed (PCM31).

• Diagnostics

• Supports E1 loopback and the embedded E1 BERT (Bit Error Ratio Tester) testing function.
• Supports Ethernet loop back detection for each channel. If loopback event is detected, the channel can be configured to be blocked to prevent from broadcast storm.

• Others:

• The E1s in the local and remote sides can be arranged arbitrarily, such as, the remote E1 port 1 can communicate with local E1 port 3.
• The differential delay between any two of the 24 E1 can be up to 220ms.

3.Technical Specification

• Power supply：
• AC+DC dual input optional.
• AC range: 85～264V AC
• DC range : -36V ～-72V DC
• Power consumption: 12W(±10％)
• Support Redundancy Power Supply Protection.
• Physical：
• Height: 43.7 mm (1U).
• Width: 434 mm (19 in).
• Depth: 210 mm.
• Weight: 3.5 Kg.
• Operating environment：
• Temperature: -5~55-deg centigrade.
• Storage Temperature: -40~70-deg centigrade.
• Relative Humidity: <95% non-condensing.
• Remote Site Family Product Table

4.Application

In the application, the Ethernet service of each remote user can be carried by different VCG channels, each VCG can be assigned to 1~16 E1 flexibility and the total bandwidth of the 16 VCG channels cannot be exceeds 24E1s..

As shown in Figure1-4-1, with EoPDH and VLAN technology, the remote Ethernet service can be transmitted and converged into the service center (Switch) by ZCC-1200N (point-to-multipoint); ZCC-1200N support OAM management frame-based E1 channel, by OAM frame, all remote devices can be configured and monitored.

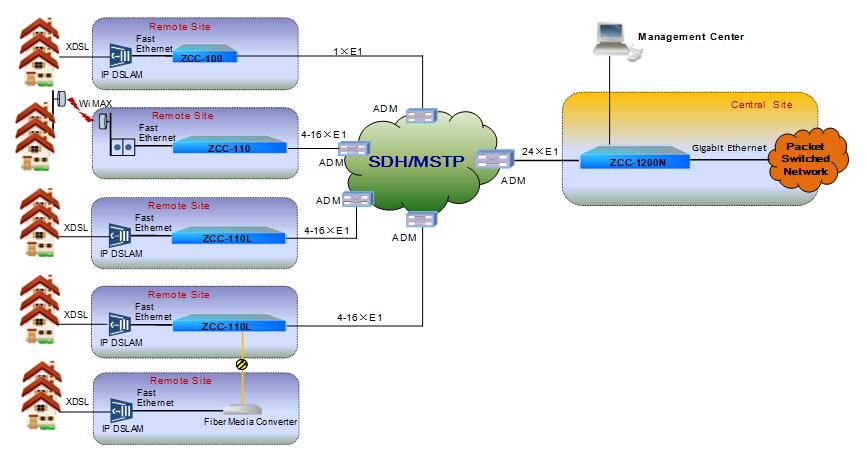

Figure.1-4-1 Point-to-Multi-Point Application

5.Order Information

ZCC-1200N8AD :16VCG Gigabit Ethernet over 8E1 Convergent Converter, 2GE+1GX Gigabit Ethernet interfaces, 8E1 75/120Ω intefaces, SNMP Managed, 1U 19”Size Rackable Unit, 220VAC+-48DC Dual Power Supply Redundancy

ZCC-1200N16AD :16VCG Gigabit Ethernet over 16E1 Convergent Converter, 2GE+1GX Gigabit Ethernet interfaces, 8E1 75/120Ω intefaces, SNMP Managed, 1U 19”Size Rackable Unit, 220VAC+-48DC Dual Power Supply Redundancy

ZCC-1200N24AD :16VCG Gigabit Ethernet over 24E1 Convergent Converter, 2GE+1GX Gigabit Ethernet interfaces, 8E1 75/120Ω intefaces, SNMP Managed, 1U 19”Size Rackable Unit, 220VAC+-48DC Dual Power Supply Redundancy
