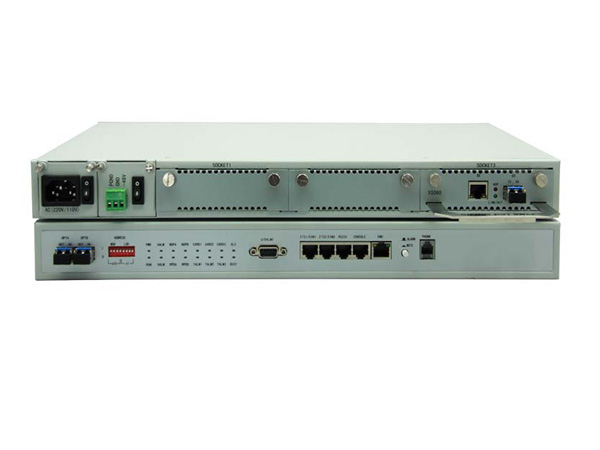

1.Overview

ZCS-310 is a STM-1 level a Terminal Multiplexer (TM) or an Add-Drop-Multiplexer (ADM) that transports Gigabit Ethernet over SDH networks. It provides 2 Gigabit Ethernet interfaces and 2 STM-1 interfaces, the 2 Gigabit Ethernet interfaces share one VCG and the bandwidth is 1～63 VC12. Therefore, By GFP and EoSDH technology, ZCS-310 can realize 2 Gigabit Ethernet traffic transmission over STM-1 line.

2.Feature

• STM-1 interface：
• Number of ports: 2 (1+1 APS, Recovering time: <50ms );
• Date rate：155.520Mbit/s;
• Connector: SFP slot, Hot pluggable, Optical or Electrical Optional;
• Clock:
• Internal timing.
• STM-1 line timing.
• External timing source input.
• External timing output
• Supports ALS (Automatic Leaser Shutdown).
• Supports RPD (Remote Power down Detection).
• Compliance: ITU-T G.957, G.841, G.813, G.707,G.825.
• Gigabit Ethernet interface：
• Number of ports: 2.
• Combinations:
• 1 electrical Gigabit Ethernet (GE).
• 1 optical Gigabit Ethernet (GX).
• Connector:
• RJ-45 for electrical (1000BaseTx).
• SFP for optical (1000BaseSx or 1000BaseLx).
• Date rate:
• Optical 1000 Mbps.
• Electrical 10/100/1000Mbps.
• Max Frame Size: 1552/2036 bytes.
• Min Frame Size: 64 bytes.
• Compliance: Relevant sections of IEEE 802.3 and IEEE802.3u.
• VCG: 1.
• Supports unicast multicast and broadcast frame.
• MAC address table: 8K.
• MAC aging time: 15/300 seconds.
• MAC address dynamic learning.
• VLAN: IEEE 802.1Q tag-based VLAN, port-based VLAN.
• QinQ: Supports QinQ (Double Tag VLAN).
• Provides performance statistic for each Ethernet port, such as error packets.
• Supports PAUSE flow control.
• Supports broadcast storm filtering control.
• Auto MDI/MDX function.
• Generic Framing Procedure GFP-F compliant with ITU-T G.7041
• VCAT compliant with ITU-T G.707 and LCAS compliant with ITU-T G.7042 (Ethernet over SDH).
• NE Management：
• CLI: Local management is performed via an CLI terminal.
• SNMP: Compatible with V1 and V2C protocol. Access is available using SNMP management software "Smartview".
• LED indication: Necessary alarm indications such as NOP, LOF, RPD.
• Download online: Supports FTP protocol and firmware download online without disturbance of existing traffic.

3.Technical Specification

• Power supply：
• AC+DC dual input optional.
• AC range: 85～264V AC
• DC range : -36V ～-72V DC
• Power consumption: 20W(±10％)
• Support Redundancy Power Supply Protection.
• Physical：
• Height: 43.7 mm (1U).
• Width: 434 mm (19 in).
• Depth: 255 mm.
• Weight: 4.0 Kg.
• Operating environment：
• Temperature: -5~55-deg centigrade.
• Storage Temperature: -40~70-deg centigrade.
• Relative Humidity: <95% non-condensing.

4.Application

ZCS-310 supports point-to-point application, in 1+1 APS mode, the 2 Gigabit Ethernet interfaces share one VCG and the bandwidth is 1～63 VC12.

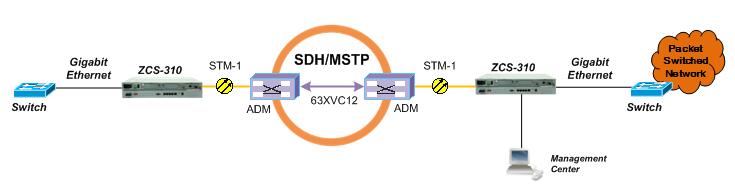

Figure.1-4-1 Point-to-Point Application

ZCS-310 supports point-to-Multi-point application.

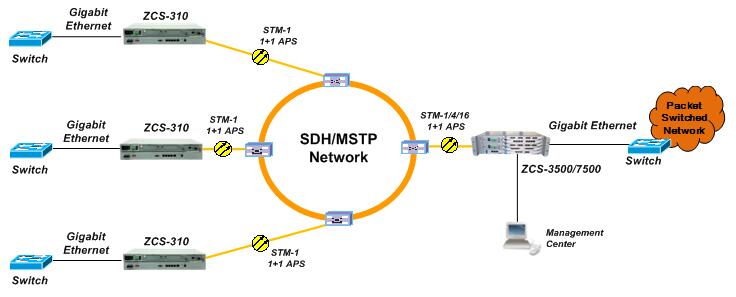

Figure.1-4-2 Point-to-Multi-Point Application

5.Order Information

ZCS-310GEOSAD : Gigabit Ethernet over STM-1 Converter, 1GE+1GX Gigabit Ethernet interfaces, 2XSTM-1 intefaces, SNMP Managed, 1U 19”Size Rackable Unit, 220VAC+-48DC Dual Power Supply Redundancy
